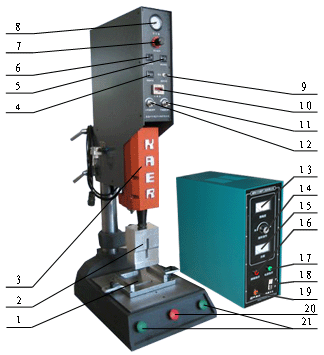

(Front)
|
1、Tooling 2、Acoustic horn 3、Shield of the transducer 4、weld time 5、Dwell time 6、Delay time 7、Pressure adjusting 8、Pressure gauge 9、Open switch 10、Counter 11、Fall speed regulating 12、Rising speed regulating 13、Frequency deviation degree 14、Frequency control 15、Load indication 16、Frequency deviation indication 17、Power supply indication 18、Power switch 19、Ultrasonic testing 20、Emergency stop button 21、Operation button |

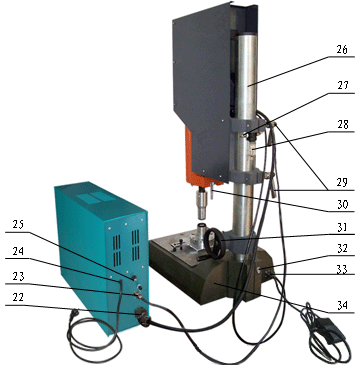

(Rear)
|
22、Plug of transducer 23、Plug of logic board 24、Power cord 25、Protector tube 26、Post 27、Interface of air supply 28、Air filter 29、Locking wrench 30、Limit screw 31、Lifting handwheel 32、earthing screw 33、Plug of control wire 34、Base |
